CANsmart Controller for F800GS F650GS F700GS 13-
Code: DNL.WHS.11900Related products
Product detailed description
One smart controller for up to 4 types of accessories. Compatible with models:
2008-2012 BMW F650GS (twin cylinder)
2013-2017 BMW F700GS
2008-2018 BMW F800GS
2014-2018 BMW F800GS Adventure
2013-2017 BMW F800GT
2006-2010 BMW F800S
2006-2013 BMW F800ST
2009-2018 BMW F800R
Additional lights (up to two pairs)
Rear Auxiliary Brake Light
Sound Bomb Horns
33 Programmable Settings
DENALI's CANSmart™ controller allows plug-n-play installation and integrated control of up to four accessories allowing for dozens of customizable settings that can be controlled directly with the BMW "WonderWheel" dial or with CANsmart™ Access Manager software (for both Windows and Mac)
Four dedicated circuits are pre-programmed to connect and independently control two sets of DENALI 2.0 headlights (one set drawing up to 10A and one drawing up to 4A), the SoundBomb horn, and the B6 auxiliary brake light. However, the clever "simple circuit override" feature allows you to use any accessory on any of the four circuits.
Two auxiliary light circuits allow independent adjustment of the brightness of the auxiliary lights directly from the BMW "WonderWheel" controller on the handlebars. It is also possible to set the auxiliary lights to strobe when you honk or use the horn.
The Denali B6 auxiliary brake light turns a regular brake light into a "smart brake light", which is supplemented by light signaling, multiple flashes and light activation by heavy deceleration.
The horn circuit allows the addition of an auxiliary heavy horn without the need to add a relay and additional wiring harness.
The package includes:

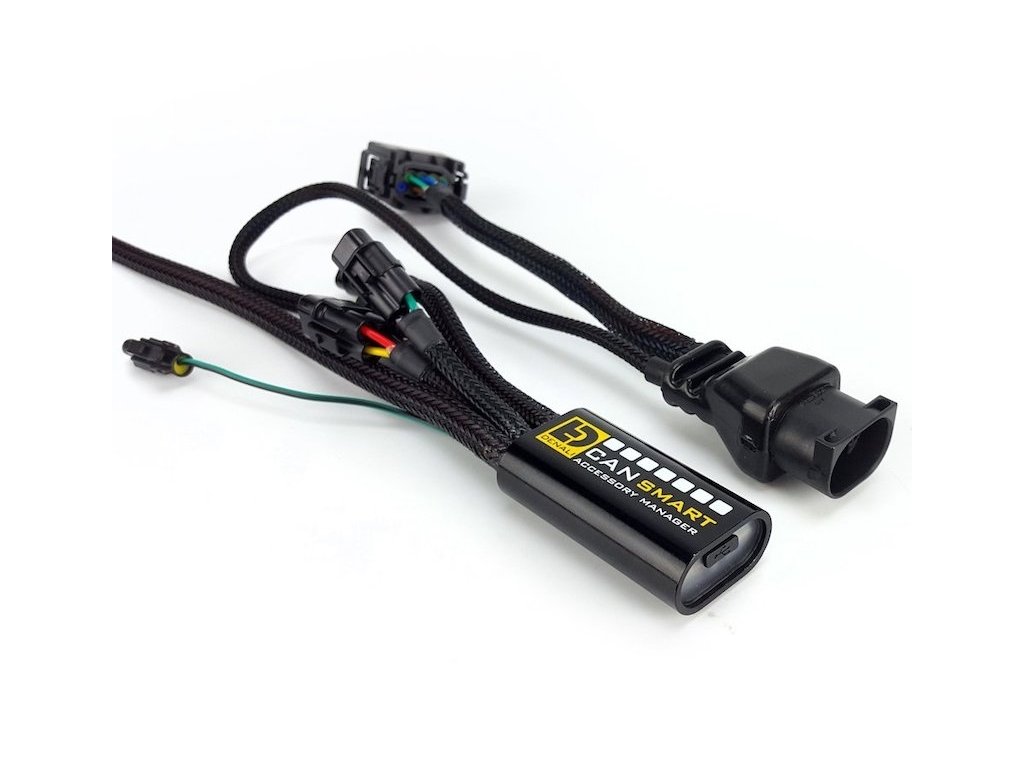

(x1) CANsmart Controller
(x2) 4-foot LED Light Extension
(x1) 5-foot SoundBomb Horn Extension
(x1) Pigtail brake light
(x4) Zip Tes
(x1) Velcro adhesive
(x1) Micro USB Programming Cable

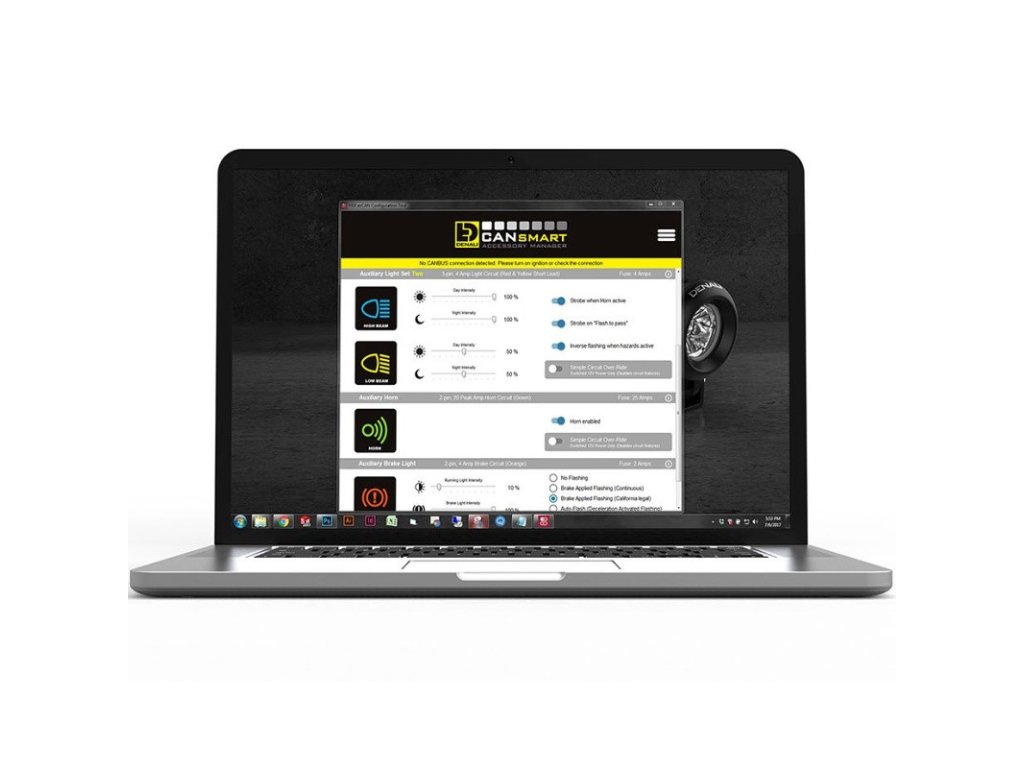

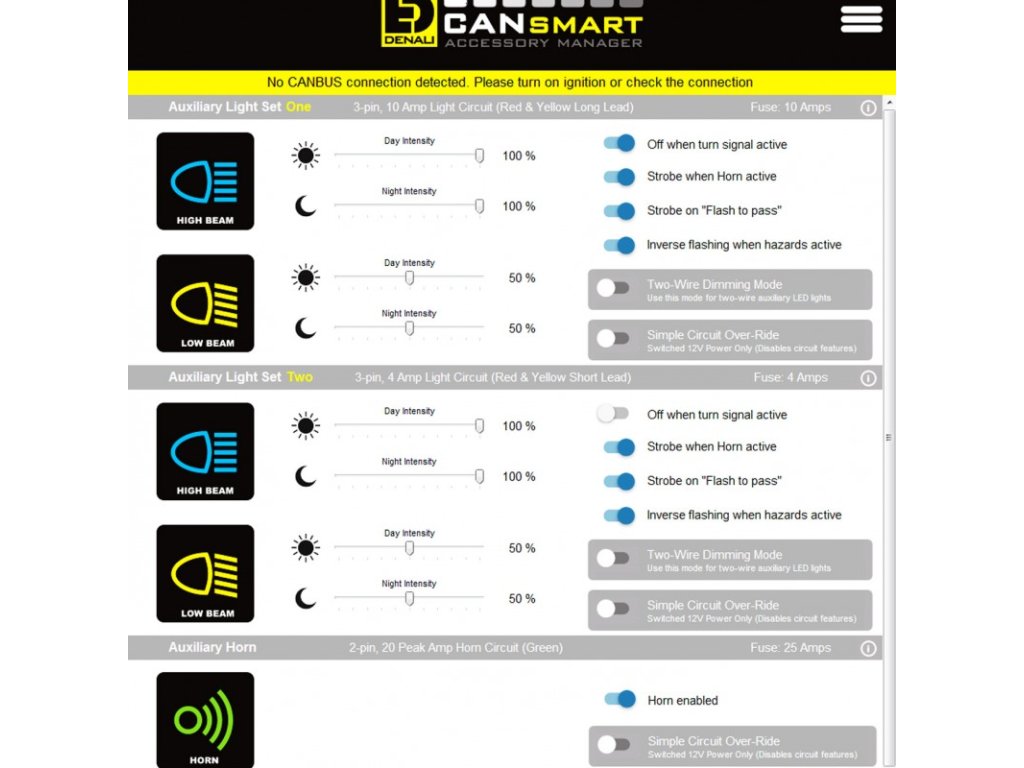

33 Available settings Via CANsmart software Access Manager
Easy Installation:
(1) Connect the CANsmart™ Controller

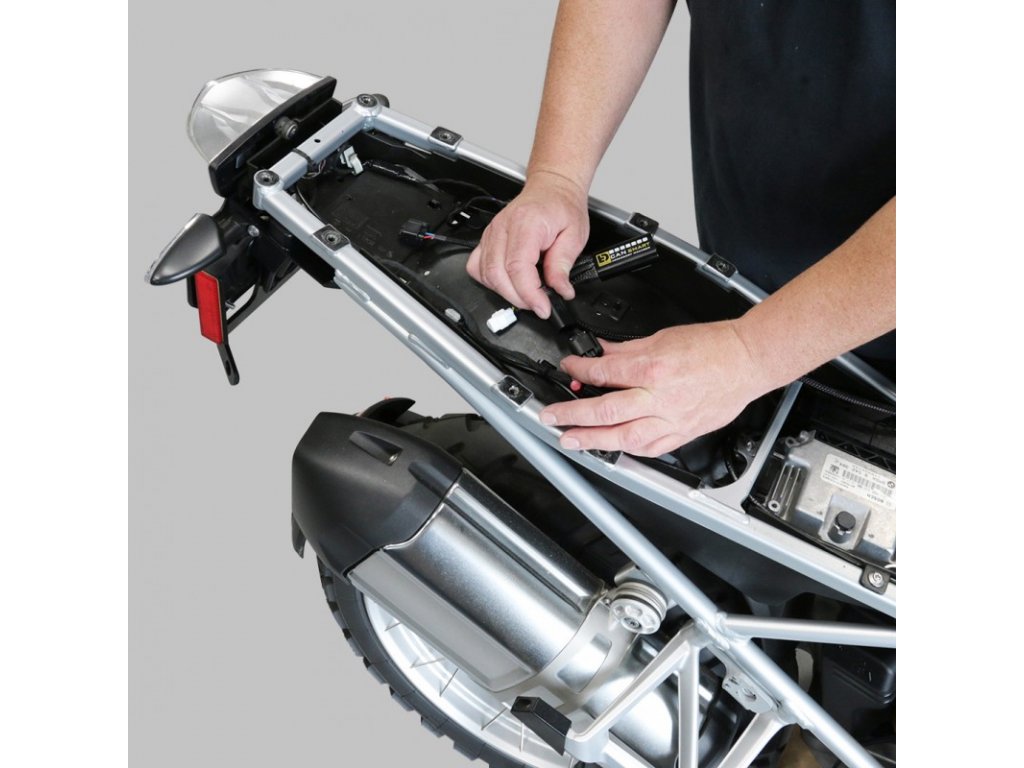

The CANsmart™ connects to the motorcycle's CANbus electrical system via the Tire Pressure Monitor (RDC) connector located under the passenger seat.
(2) Train

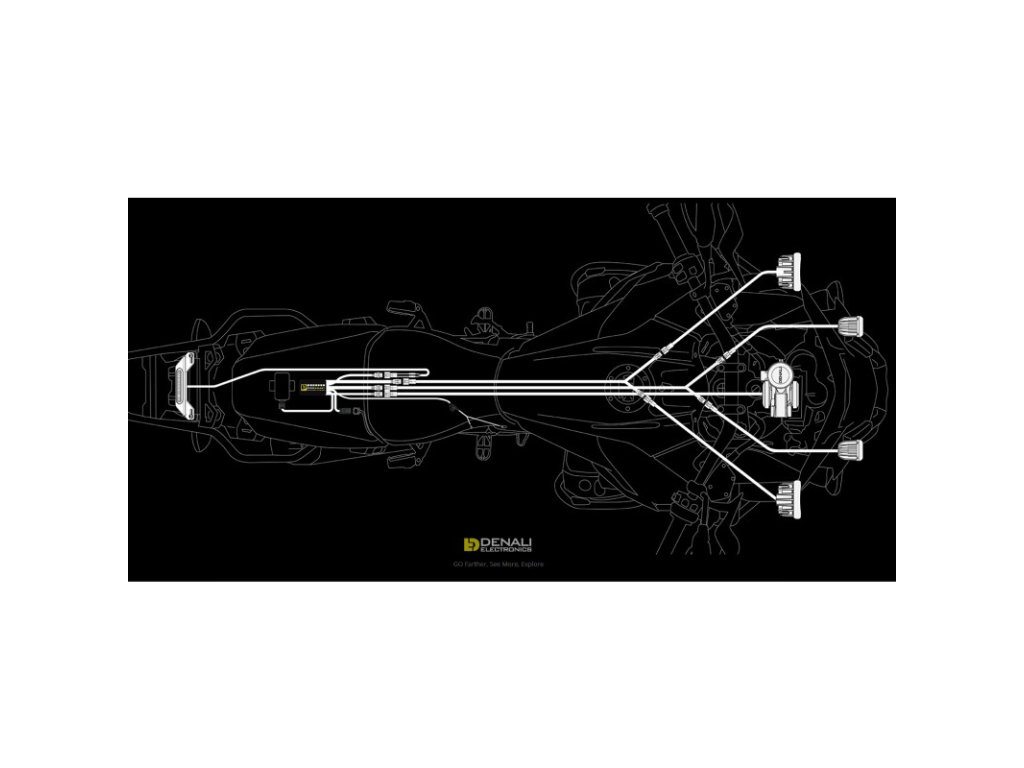

Run the power wires to the battery. Connect the horn extension harness and light extension harnesses to the CANsmart™ unit and to the installed accessories.
(3) Connect to Battery
Connect the terminals from the CANsmart™ unit to the battery.
(4) Connect Accessories
Simply connect your accessories and you're ready to ride. No custom programming is required as the default settings are already preset for two sets of auxiliary lights, the horn and the auxiliary brake light.
With the CANsmart™ Access Manager software, you can individually re-set each circuit.
The default control looks like this:
Exiting the light intensity setting mode - hold the "info" button for 1.4 seconds or wait 5 seconds.
Additional parameters
| Category: | BMW R1250GS 19-22 / Adventure |
|---|---|
| Part type: | Lights |
| Universal - specific: | Model Specific |
