CANsmart Controller GEN II for F850GS F900GS
Code: DNL.WHS.11702Related products
Product detailed description

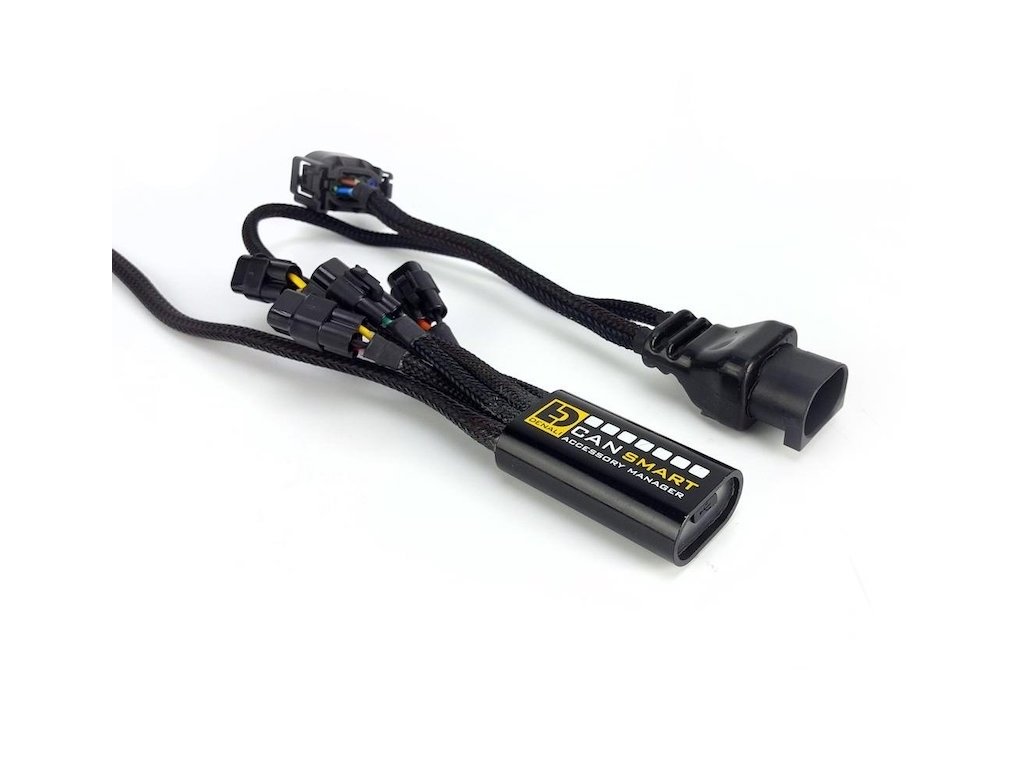

One smart controller for up to 4 types of accessories. It is compatible with all F850GS and F750GS motorcycle models
Auxiliary lights (up to two pairs)
Rear auxiliary brake light
Sound Bomb Horns
33 programmable settings
DENALI's CANSmart™ controller allows plug-n-play installation and integrated control of up to four accessories allowing for dozens of customizable settings that can be controlled directly from the BMW "WonderWheel" control wheel or via CANsmart™ Access Manager software (for Windows and Mac)

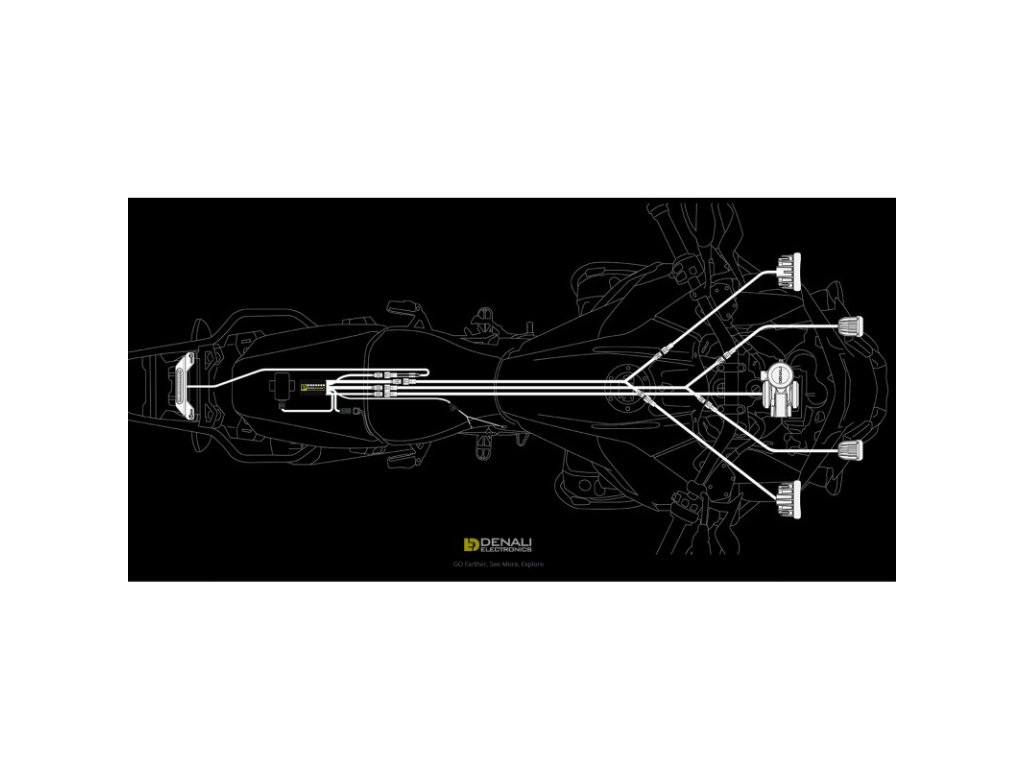

Four dedicated circuits are pre-programmed to connect and independently control two sets of DENALI 2.0 headlights (one set with up to 10A draw and one with up to 4A draw), a SoundBomb horn, and a B6 auxiliary brake light. However, a clever "simple circuit override" feature allows you to use any accessory on any of the four circuits.
Two auxiliary light circuits allow independent adjustment of the auxiliary light brightness directly from the BMW "WonderWheel" controller on the handlebars. It is also possible to set the strobe flashing of the auxiliary lights when you honk or use the high beam horn.
The Denali B6 auxiliary brake light turns a regular brake light into a "smart brake light", which is supplemented by light signaling, multiple flashes and light activation by strong deceleration.
The horn circuit allows the addition of an auxiliary strong horn without the need to add a relay and additional wiring harness.
The package includes:
(x1) CANsmart Controller
(x2) 2m LED light extension cables

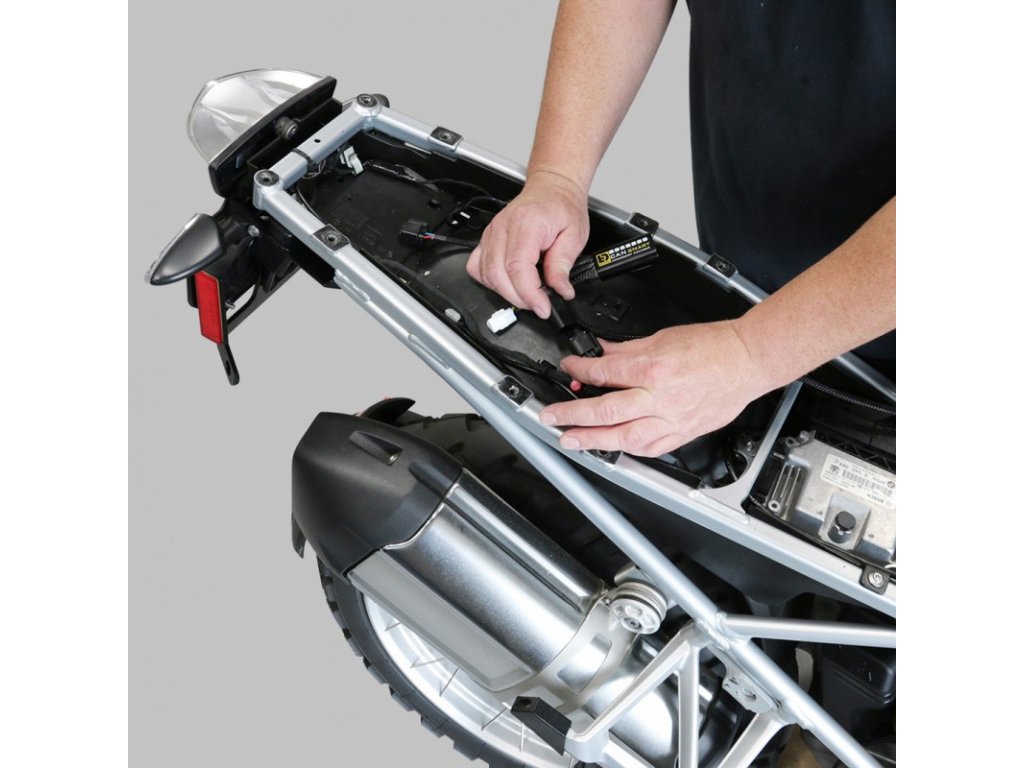

(x1) SoundBomb Horn Cable (x1) Pigtail Brake Light Cable (x4) Cable Ties (x1) Velcro Adhesive (x1) Micro USB Programming Cable (x1) 33 Available Settings Via CANsmart Access Manager Software (x1) Easy Installation: (1) Connect the CANsmart™ Controller (x1) The CANsmart™ device connects to the motorcycle's CANbus electrical system via the Tire Pressure Monitor (RDC) connector located under the passenger seat. (2) Teach the power wires to the battery. Connect the horn extension harness and light extension harnesses to the CANsmart™ unit and to the installed accessory.
(3) Battery Connection
Connect the terminals from the CANsmart ™ unit to the battery.
(4) Connect the accessory
Just connect the accessory and you are ready to ride. No custom programming is required as the default settings are already preset for two sets of auxiliary lights, horn and auxiliary brake light.

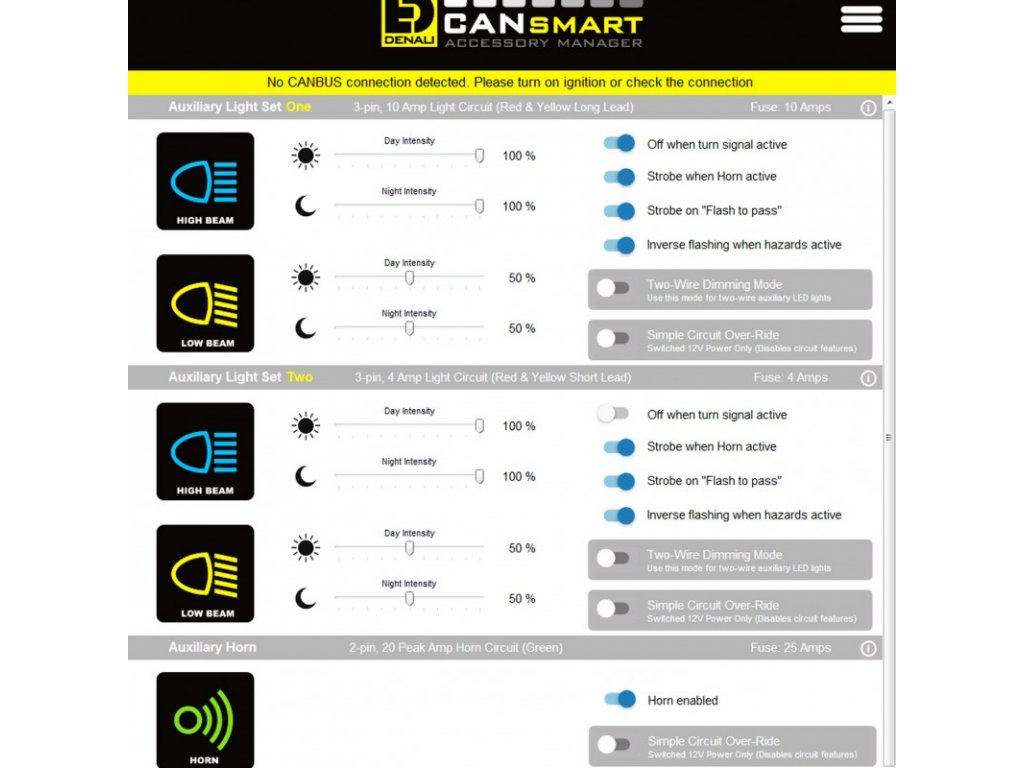

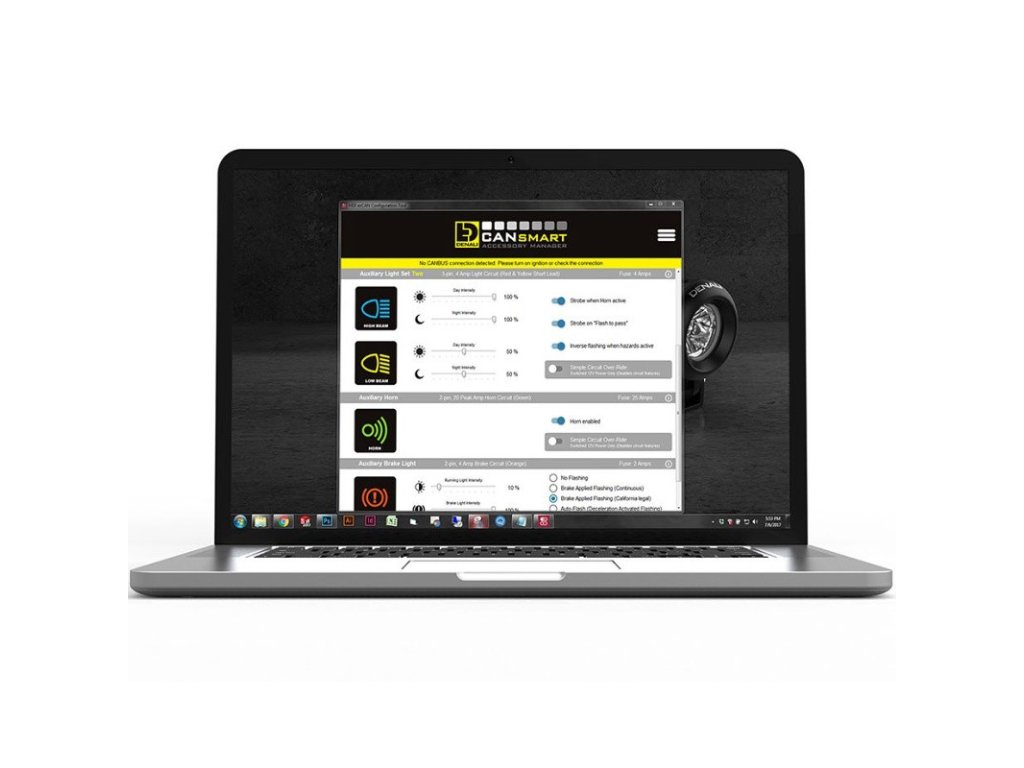

You can individually re-set each circuit using the CANsmart™ Access Manager software.
The default control looks like this:
Entering intensity setting mode - hold the ring to the right for 3 seconds
Exiting the light intensity setting mode - hold the ring to the right for 1 second or wait 5 seconds.
Additional parameters
| Category: | BMW F850GS F800GS F750GS |
|---|---|
| Part type: | Lights |
| Universal - specific: | Model Specific |
Be the first who will post an article to this item!
The company was founded with the goal of providing innovative solutions that allow motorcyclists to push their boundaries and explore new environments without having to sacrifice their safety.
In 2022, DENALI officially joined forces with VisionX Lighting, a global leader in automotive lighting. This merger allowed them to further innovate and leverage their rich experience in the industry.
Main products and focus:
-
LED lighting: Their strongest segment is high-performance LED auxiliary lights for motorcycles. They use proprietary technologies that allow them to achieve strong light output with minimal energy consumption.
-
SoundBomb Horns: They also produce extremely loud horns that aim to attract the attention of careless drivers and thus increase the safety of the motorcyclist.
-
CANsmart controllers: These are "smart" controllers that allow you to integrate additional accessories (lights, horn) directly into the motorcycle's electronics (CANbus system). This allows, for example, to set the lights to behave intelligently according to the speed or braking of the motorcycle.
-
Mounting and connection kits: They offer specific mounting kits and wiring for specific motorcycle models, which makes installation easier and ensures that the accessory fits perfectly.
