Fixed Dock GaN station FIXED LCD 4x USB-C a USB PD 3.2 140W

Product detailed description

A powerful desktop charging station designed for users who need to quickly and efficiently charge multiple devices at once. Thanks to modern GaN technology, it delivers high performance in a compact size, with lower heat generation and higher energy efficiency. The station supports the latest Power Delivery 3.2 standard with AVS technology and provides up to 140W on a single port, making it capable of charging even high-performance work laptops without any issues.

A practical TFT display shows the current charging power, load on individual ports, charging time, device temperature, or standby mode. You can easily switch between screens using a button on the top, and the display can be rotated for both horizontal and vertical use. The desktop design with a stable stand and a 1.5 m power cable ensures comfortable use at home or in the office. Integrated protections against overheating, overvoltage, and short circuit guarantee safe operation for all connected devices.

Features:

• Powerful desktop GaN charging station

• Up to 140W output on a single port

• Power Delivery 3.2 support with AVS technology

• Supports PPS, PD, QC, and AVS charging protocols

• Suitable for laptops, phones, tablets, and other USB devices

• GaN technology for higher efficiency and lower heat

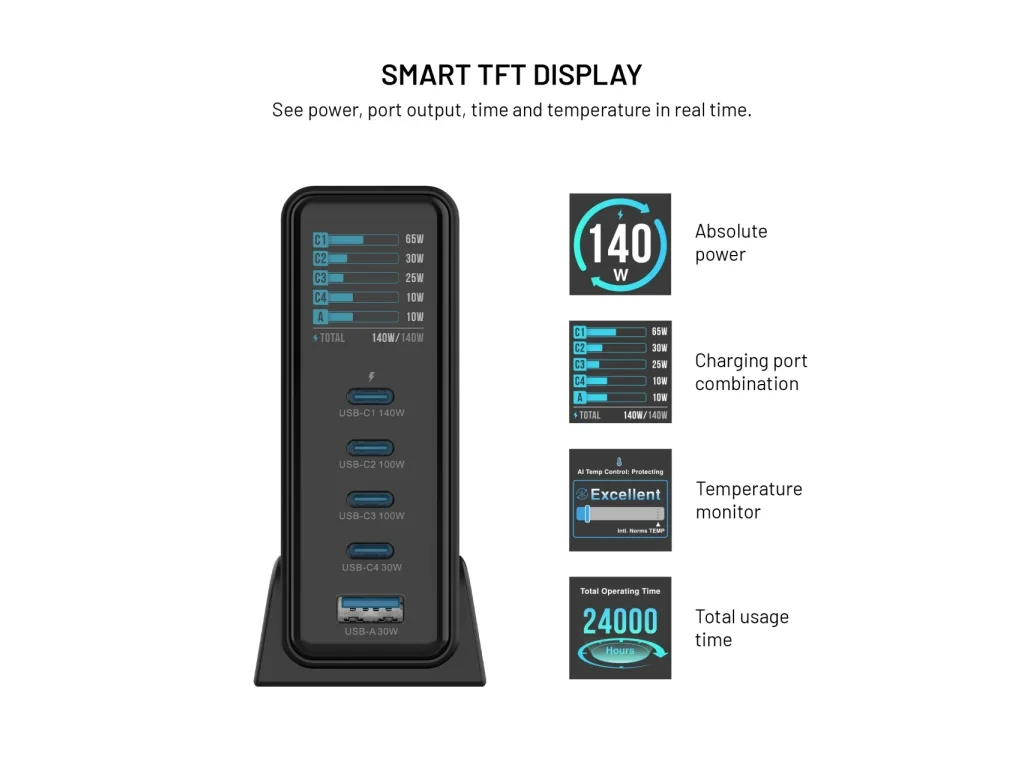

• TFT display with information on power, port load, temperature, and charging time

• Rotatable display for horizontal and vertical use

• Desktop design with a stable stand

• 1.5 m power cable

• Intelligent power distribution based on connected devices

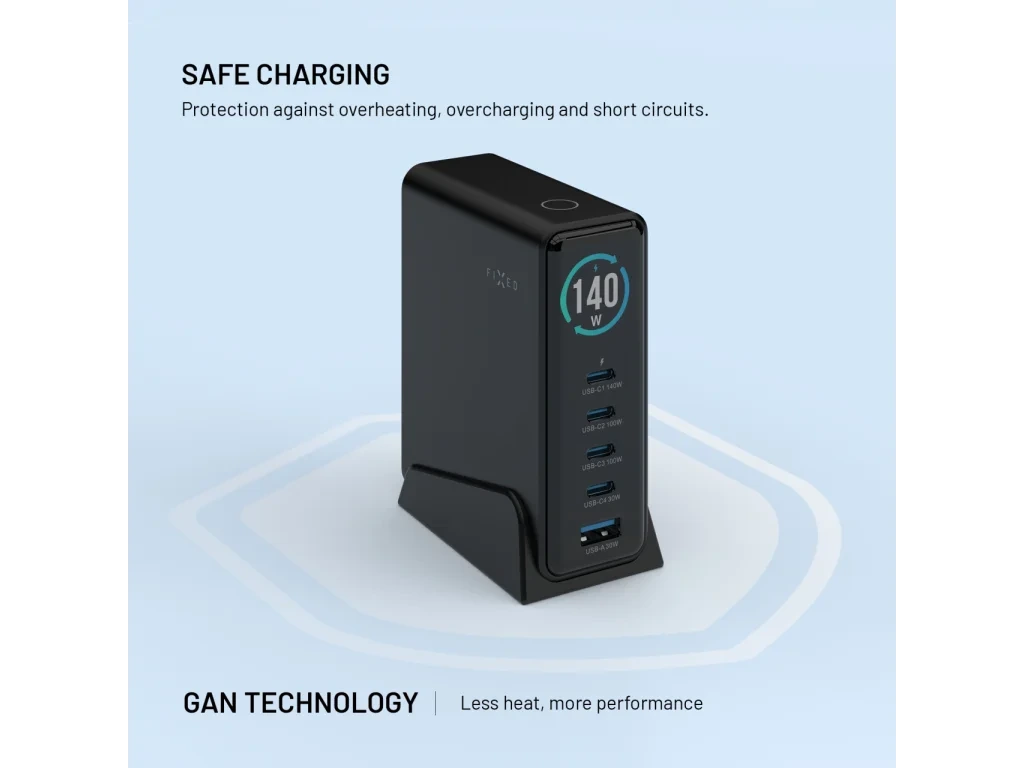

• Protection against overheating, overvoltage, and short circuit

Technical details:

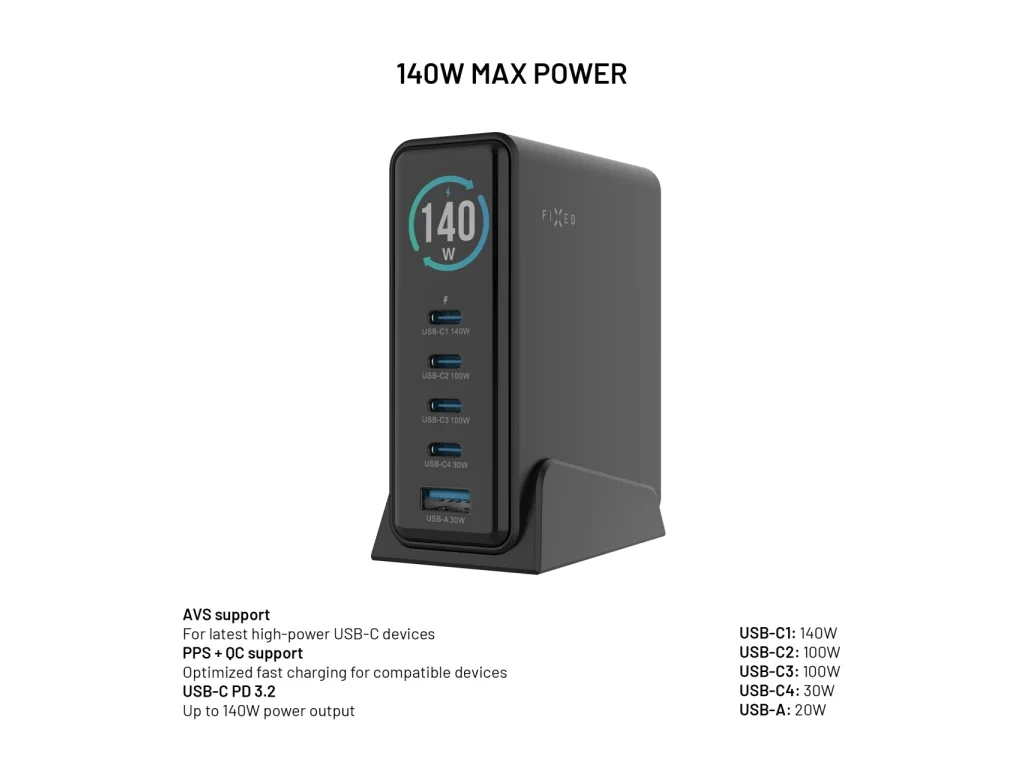

• Total output: 140W max

• Input: AC 100–240V, 50/60Hz, 3.5A max

Port outputs:

• USB-C1: up to 140W (supports PD3.1, AVS, PPS, QC, AFC, FCP, SCP, UFCS, Apple 2.4A, Samsung 5V/2A, DCP)

• USB-C2 / C3: up to 100W (PD3.2, AVS, PPS, QC, AFC, FCP, SCP, UFCS, Apple/Samsung/DCP)

• USB-C4: up to 30W (PD3.2, PPS, QC, AFC, FCP, SCP, Apple/Samsung/DCP)

• USB-A: up to 30W (QC, AFC, FCP, Apple/Samsung/DCP)

Output combinations (examples):

• C1/C2 + C2/C3: 65W + 65W (130W max)

• C1/C2/C3 + C4: 100W + 30W (130W max)

• C1/C2/C3 + A: 100W + 30W (130W max)

• C4 + A: 20W max

• C1/C2/C3 + C4 + A: 100W + 20W (120W max)

• C1/C2 + C2/C3 + C3/C4: 65W + 45W + 25W (135W max)

• C1/C2 + C2/C3 + A: 65W + 45W + 18W (128W max)

• C1 + C2 + C3 + C4: 65W + 30W + 25W + 20W (140W max)

• C1 + C2 + C3 + A: 65W + 30W + 25W + 18W (138W max)

• C1/C2 + C2/C3 + (C4 + A): 65W + 45W + 20W (130W max)

• C1 + C2 + C3 + (C4 + A): 65W + 30W + 25W + 20W (140W max)

• Power support: PD 3.2 / PPS + PD + QC + AVS + DPS

• Material: ABS + flame-retardant PC

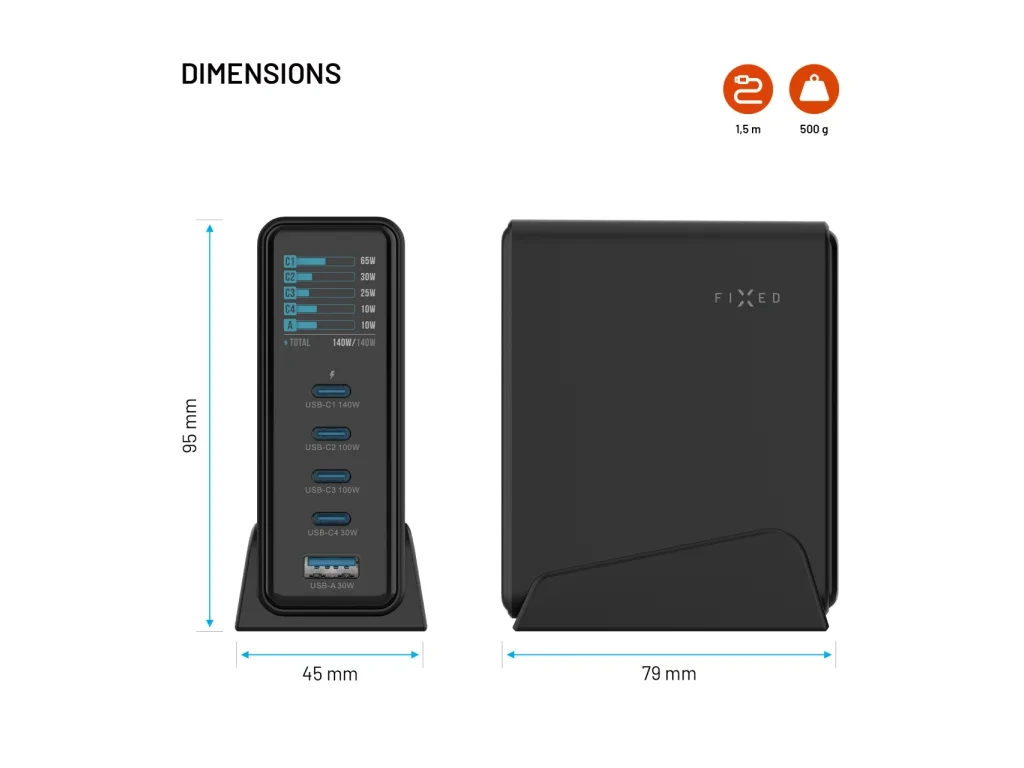

• Dimensions: 45 × 79 × 95 mm

• Weight: 500 g
