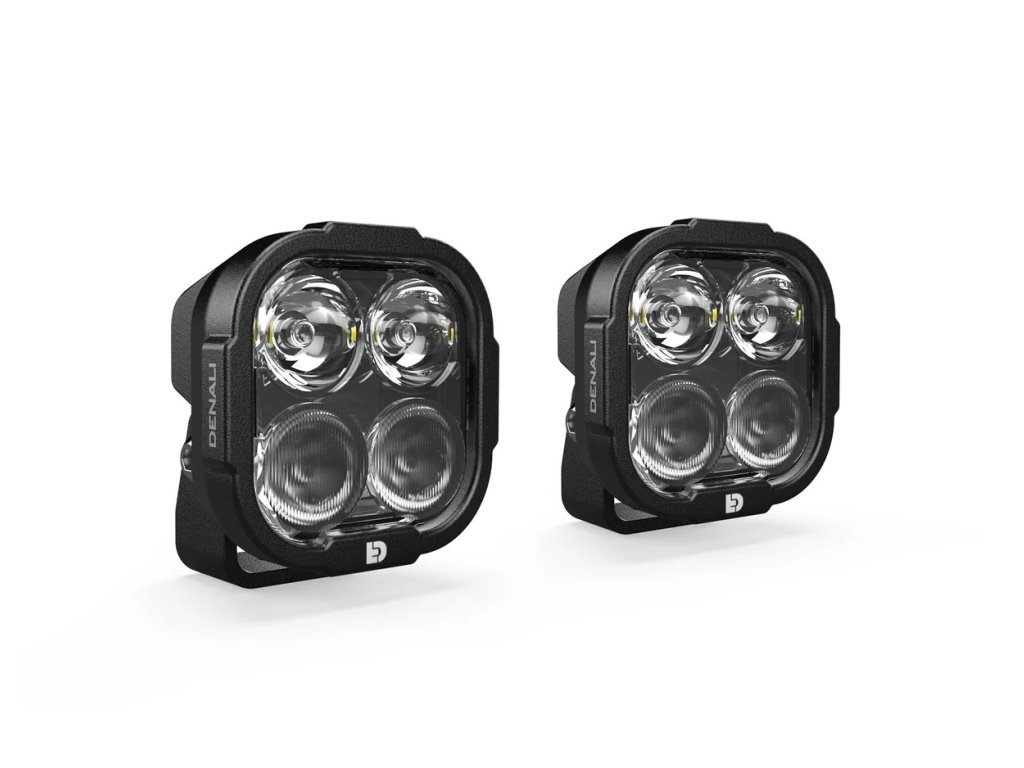

DL4 Driving Light Pods with DataDim™ Technology
Code: DNL.DL4.050.WProduct detailed description
You will also need wiring and a switch:
- the cheapest option is the classic switch Premium switch and wiring for lights - Premium Powersports.
- greater adjustment options and comfortable control are offered by theDenali DialDim Lighting Controller
- the greatest adjustment options are provided by the Can Smart Controller, available for modern motorcycles with a Can Bus. The original buttons on the motorcycle handlebars are then used as control elements. You can find them in the lighting section of motorcycles for which the CanSmart Controller is available.
The package only includes a small console with an M8 screw, so you will also need headlight holders.
We present the brightest and most durable high beams for motorcycles that won't break your wallet. Designed with decades of customer feedback, our DL Series high beams are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price that is more accessible to new riders, younger riders, and our rapidly growing international customer base!
How can they be so good yet so affordable? With our one-piece TIR optics and robotically sealed construction, we are able to reduce part count, speed assembly time, and lower overall manufacturing costs without sacrificing any changes to our cutting-edge LEDs, circuitry, or optical design. The result is an indestructible and submersible light unit that can provide more light for the price than any of our competitors. All DL Series lamps are available in white, amber or selective yellow beam colors and are compatible for wiring and use with all DENALI light clusters and controllers.

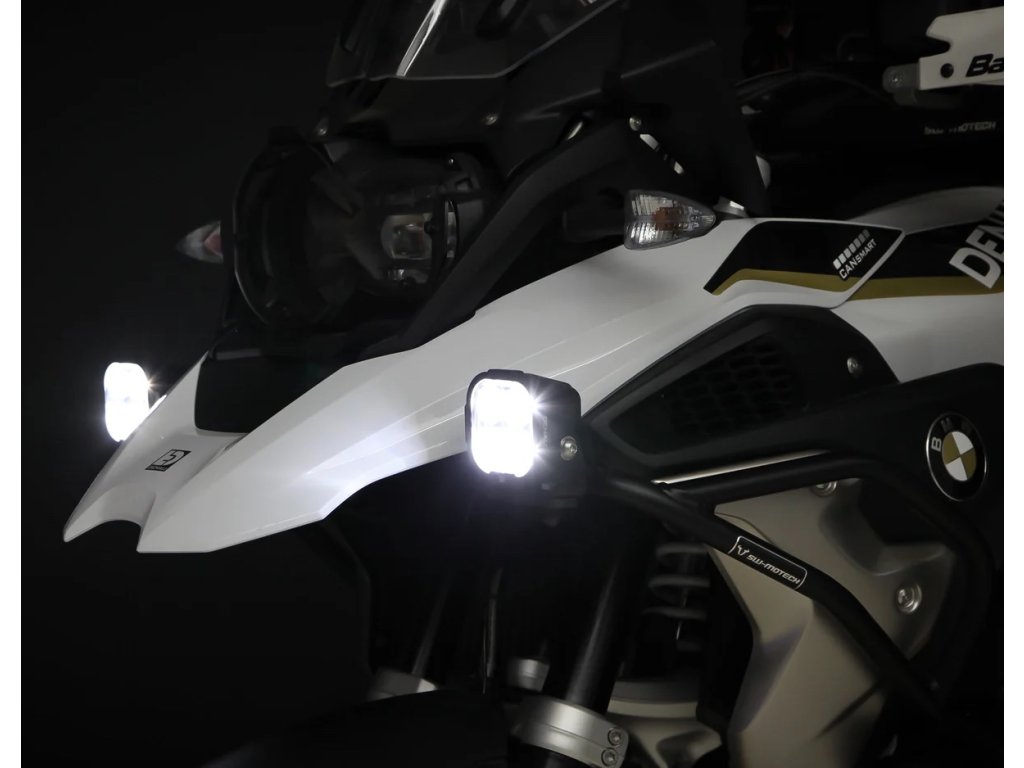

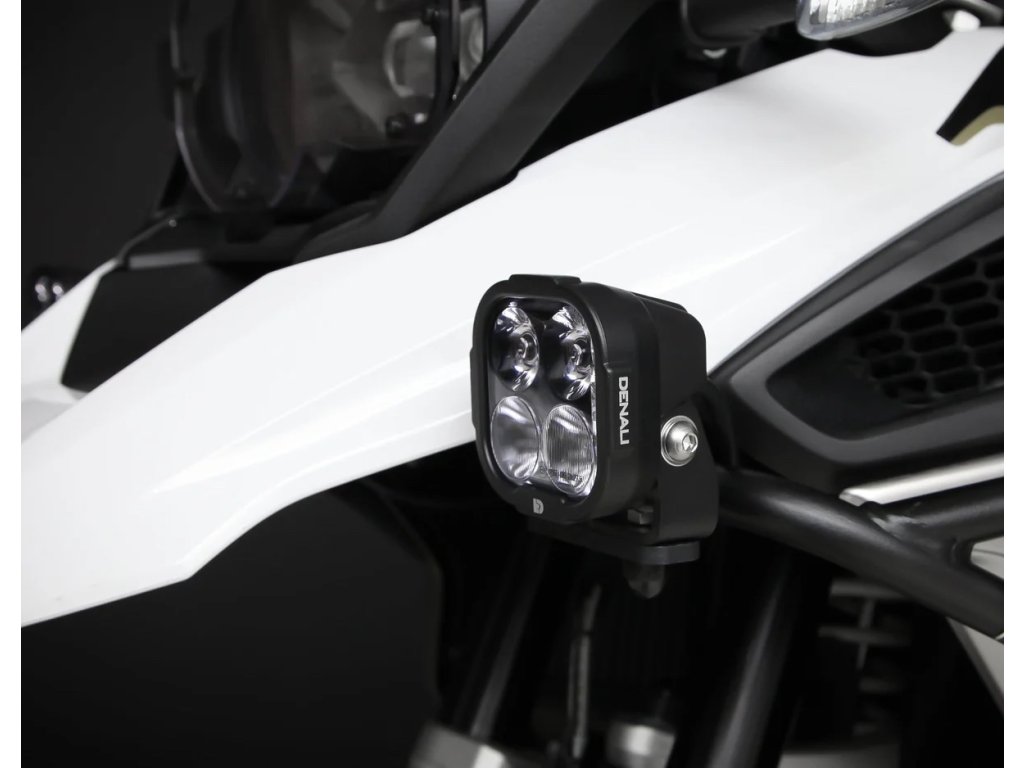

The DL4 model features an advanced hybrid high beam and is the ideal choice for your primary auxiliary high beam on small and mid-sized motorcycles. It's also small and light enough to mount on the lower fender of larger ADV motorcycles.
Features:
-
HiDrive LED 6,800 lumens per pair – Top-of-the-line 8W CREE LEDs each deliver a remarkably powerful beam in a rugged 9-LED square package.
-
Large TIR Optics - Advanced Hybrid High Beam – Our patented TIR optics distribute the light beam more efficiently than traditional reflector optics, giving our high beam unmatched distance and width from the most compact package possible.
-
DataDim™ Plug-&-Play Dimming – Our signature 3-wire design uses dedicated dimming cables for maximum reliability and connectivity to all light bundles DENALI, DialDim and CANsmart controllers.
-
DrySeal™ Sealed Beam Construction – Our patented technique robotically seals the lens and uses an internal potting at the cable entry to guarantee 100% waterproof submersible performance, even when the connectors are removed.
-
Rebuilt, not overpriced – Our 4mm thick powder-coated steel brackets and rugged heat sink allow for an impressive 21 grms vibration resistance, while our polycarbonate lenses are reinforced with a UV coating.
-
ECE-Compliant High Beam – Our hybrid high beam is ECE certified for street legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not suitable for street legal use as high beam.
Specifications (individual | pair):
-
**LED: ** Cree XPL HI (8W each)
-
**Wattage: ** 32W | 64W
-
**Current Draw: ** 2.7A | 5.4A
-
**Raw Lumens: ** 3,400 | 6,800
-
**Beam Distance: ** 820' (250m) | 1091' (333m)
-
**Beam Width: ** 157' (48m) | 209' (64m)
-
**Connector: ** DataDim compatible 3-wire DT
-
**Color temperature: ** 6000K
-
**Operating voltage: ** 9-32 VDC
-
**Light size: ** 3" x 3" square x 2" deep
-
**Light weight: ** 1.2 lbs | 2.4 lbs
-
**IP rating: ** IP68 & 69K Waterproof Submersible & High pressure jet
-
**Beam certification: ** ECE R149 High beam (auxiliary high beam)
-
**EMC: ** R10, CISPR 25, CE, UKCA Compliant
Additional parameters
| Category: | Auxiliary Headlights |
|---|---|
| Part type: | Lights |
| Universal - specific: | Universal parts |
